Ships in 1-2 working days.

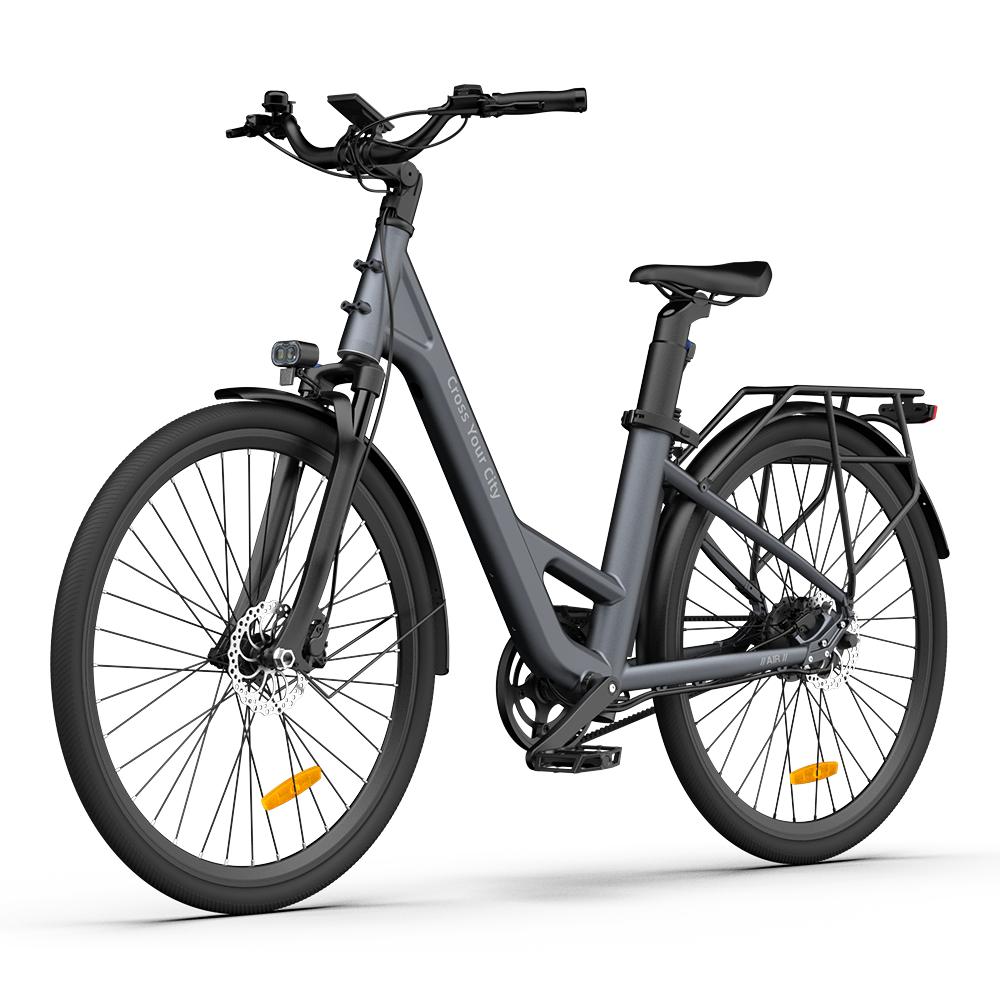

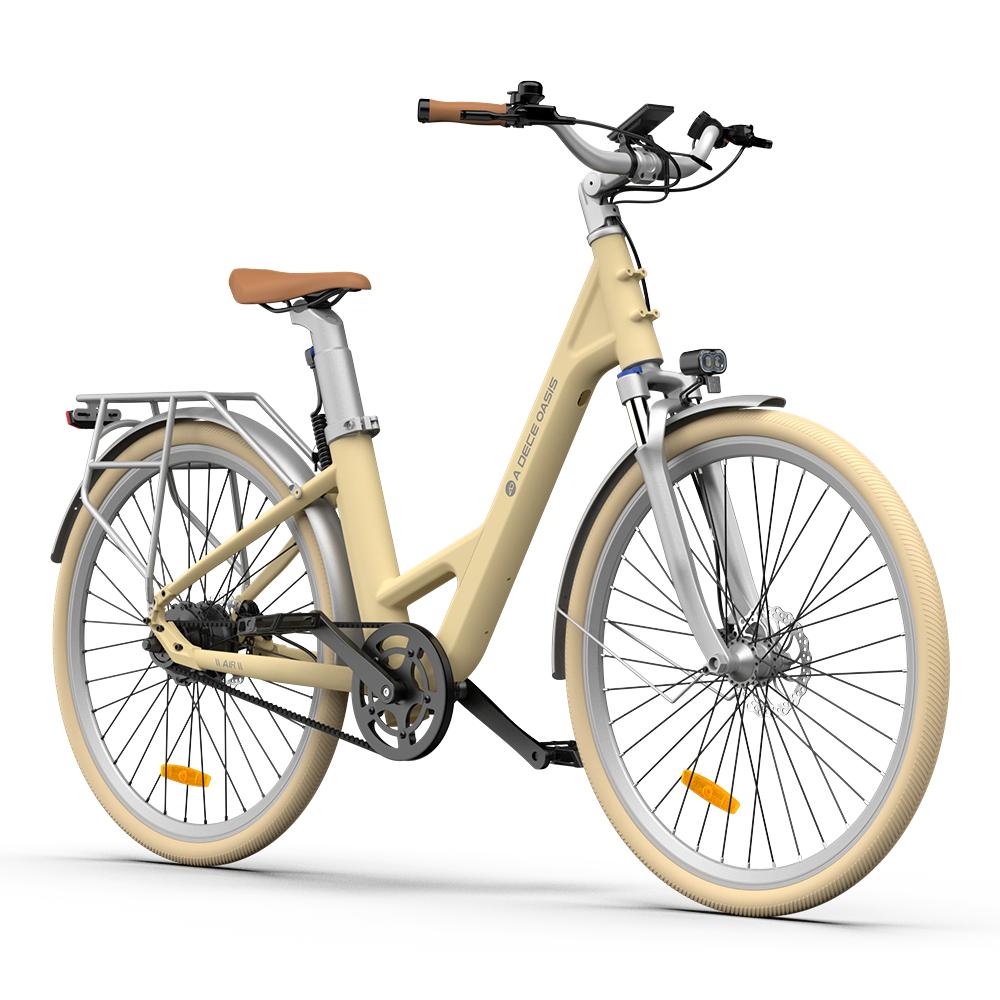

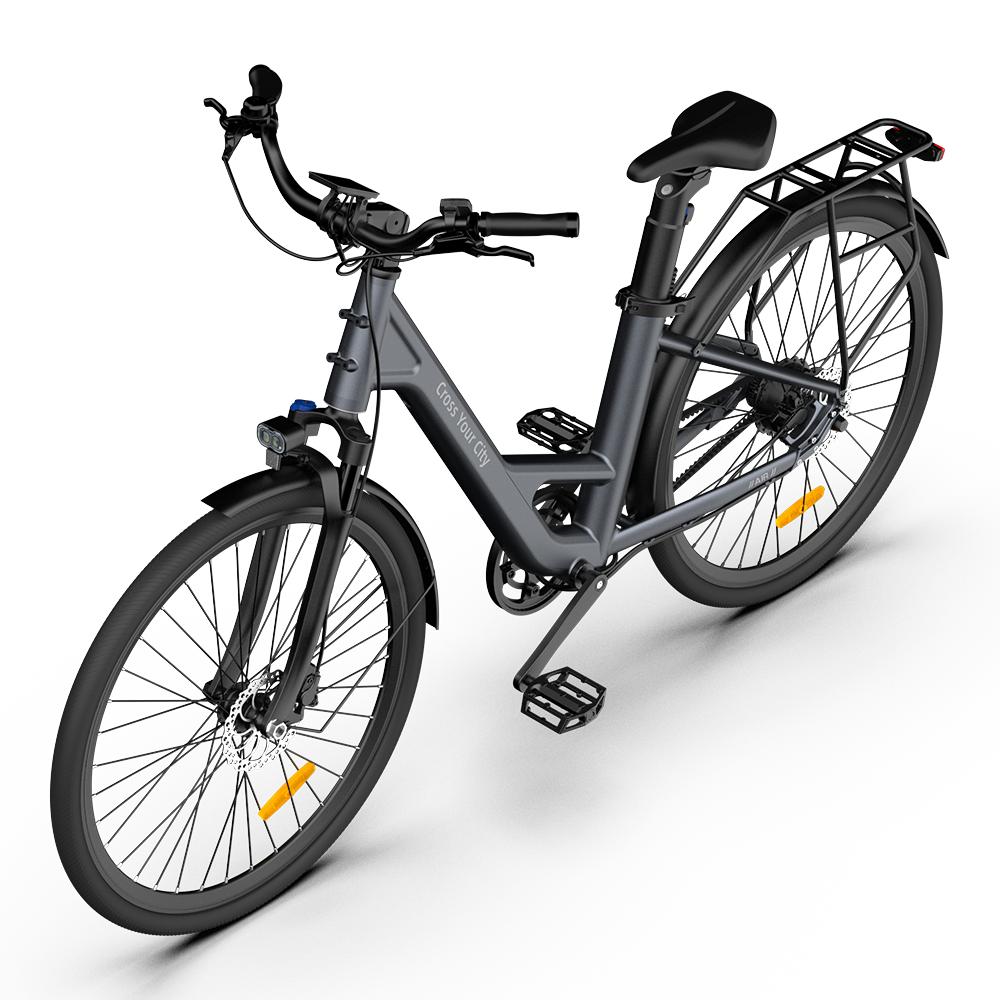

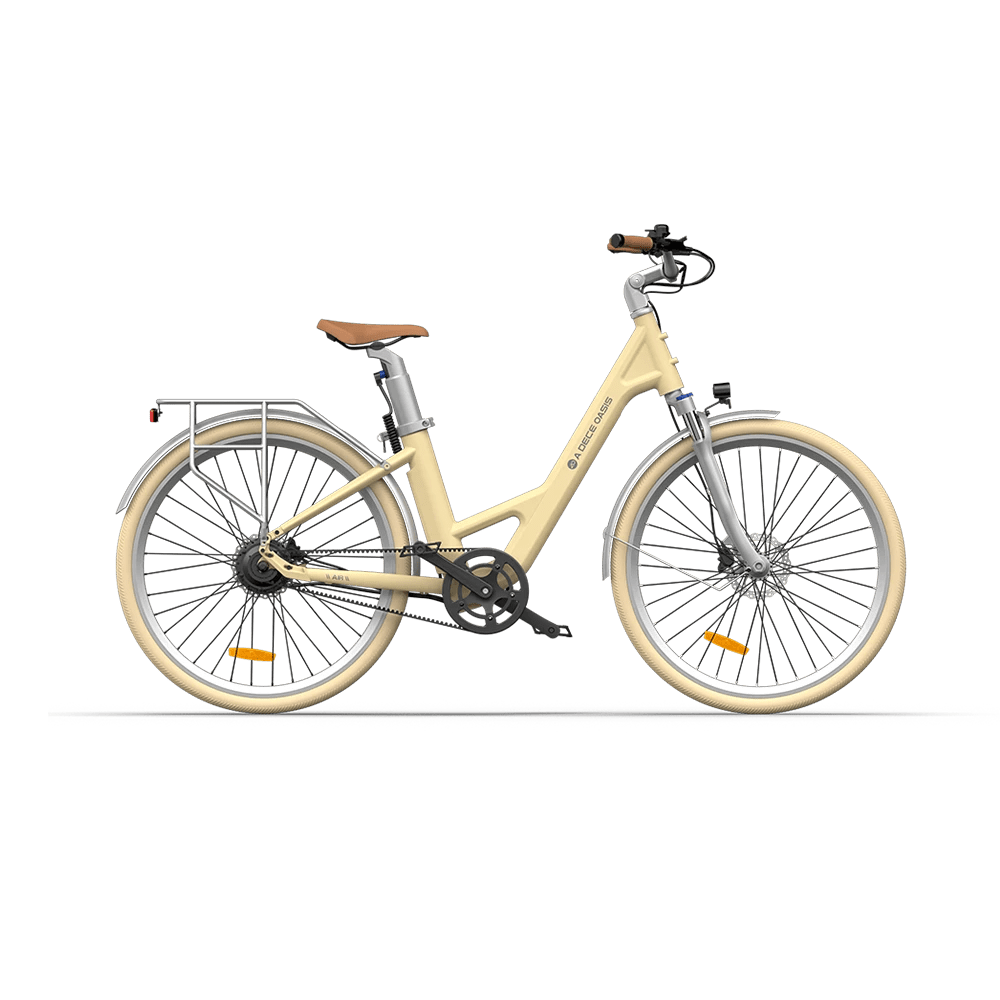

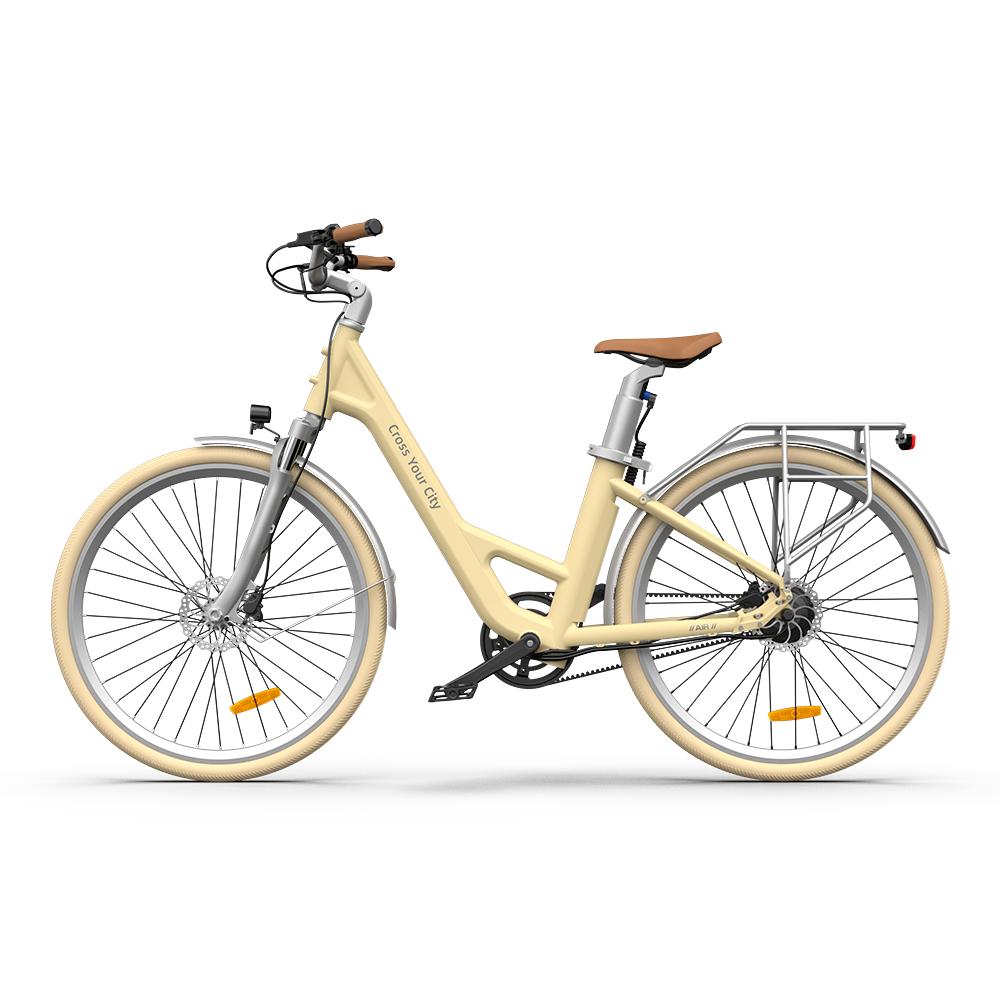

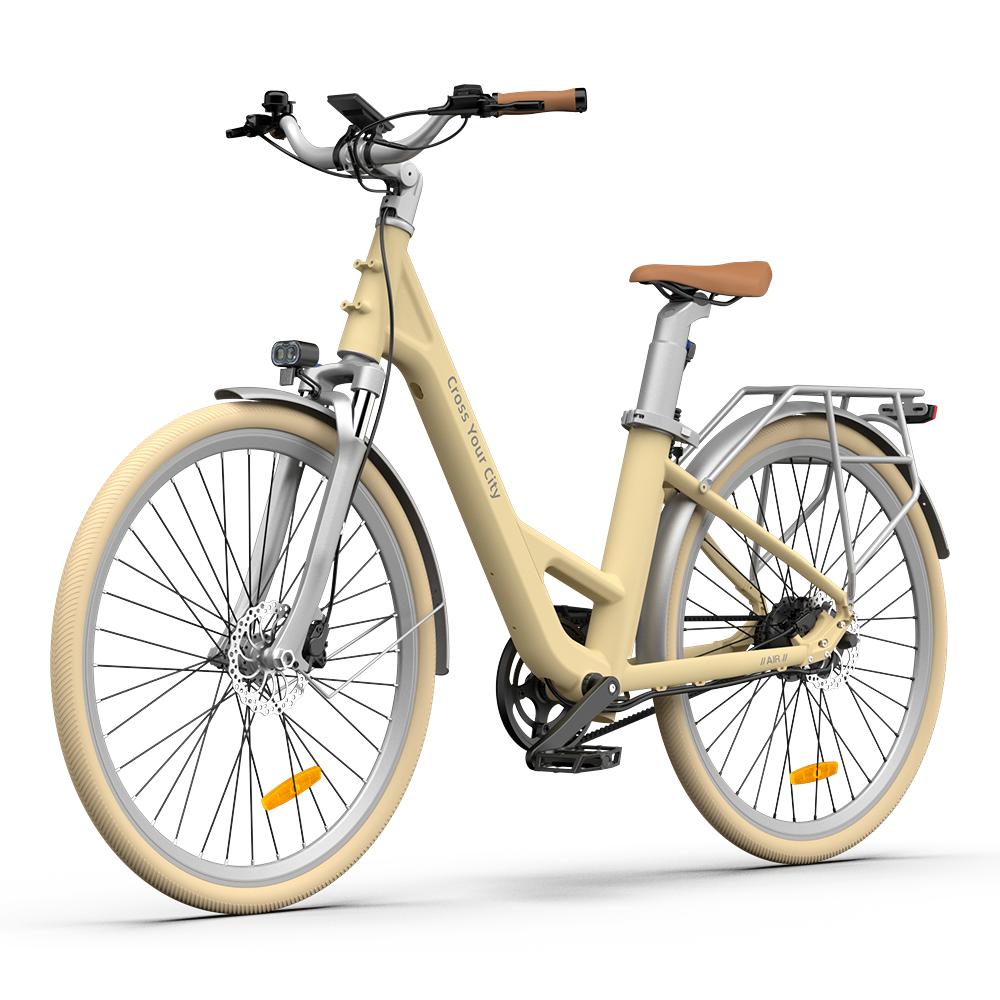

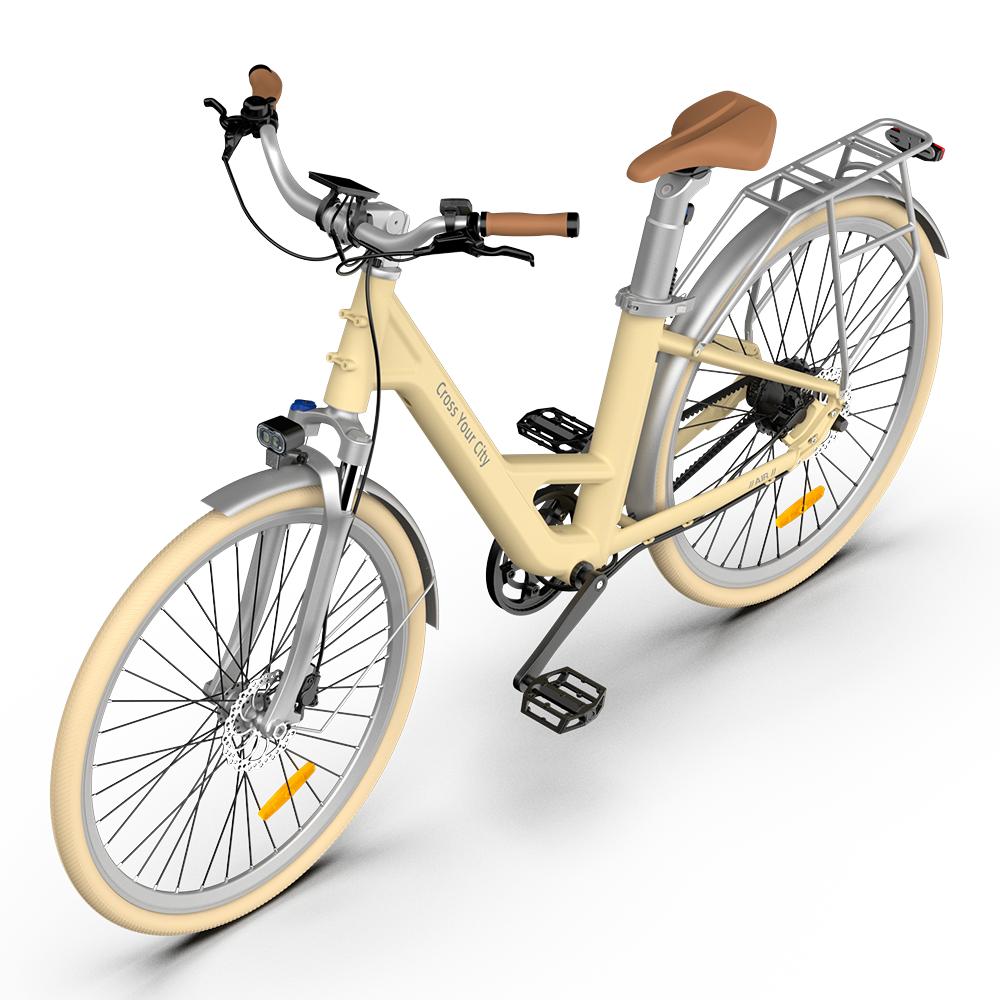

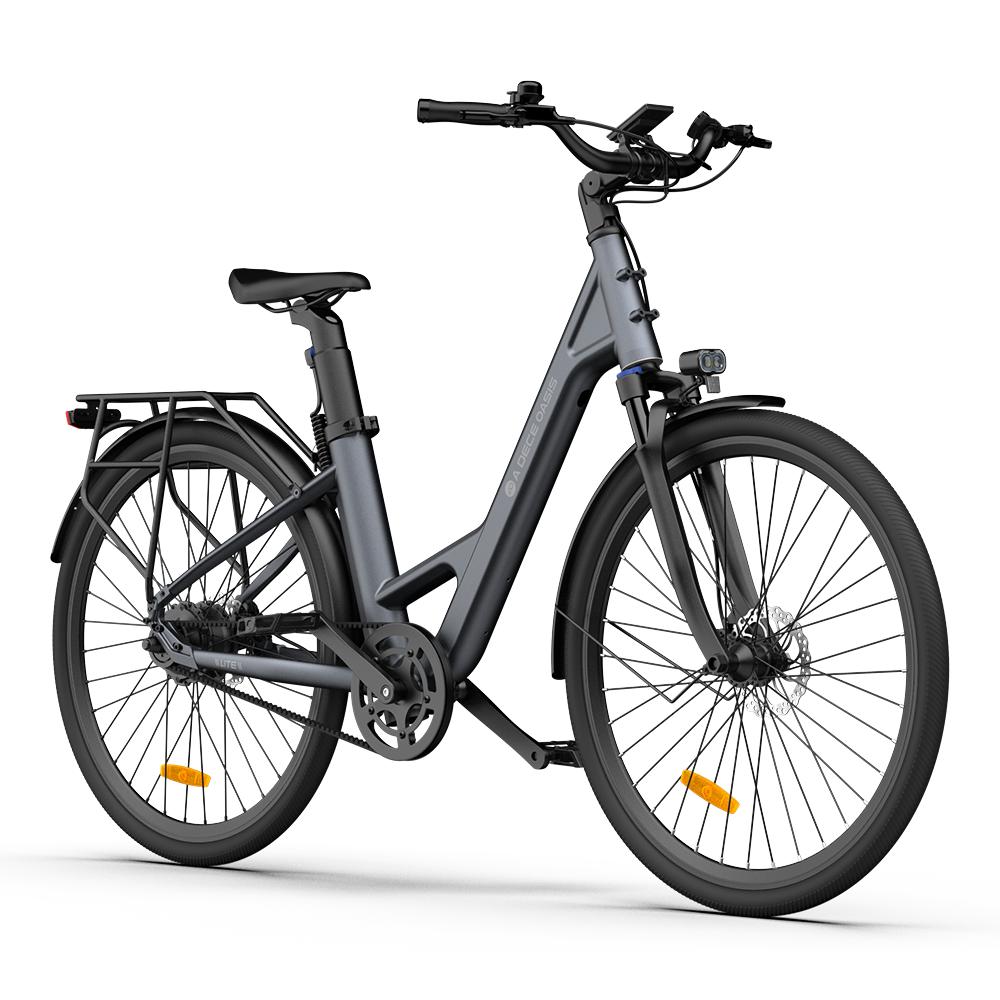

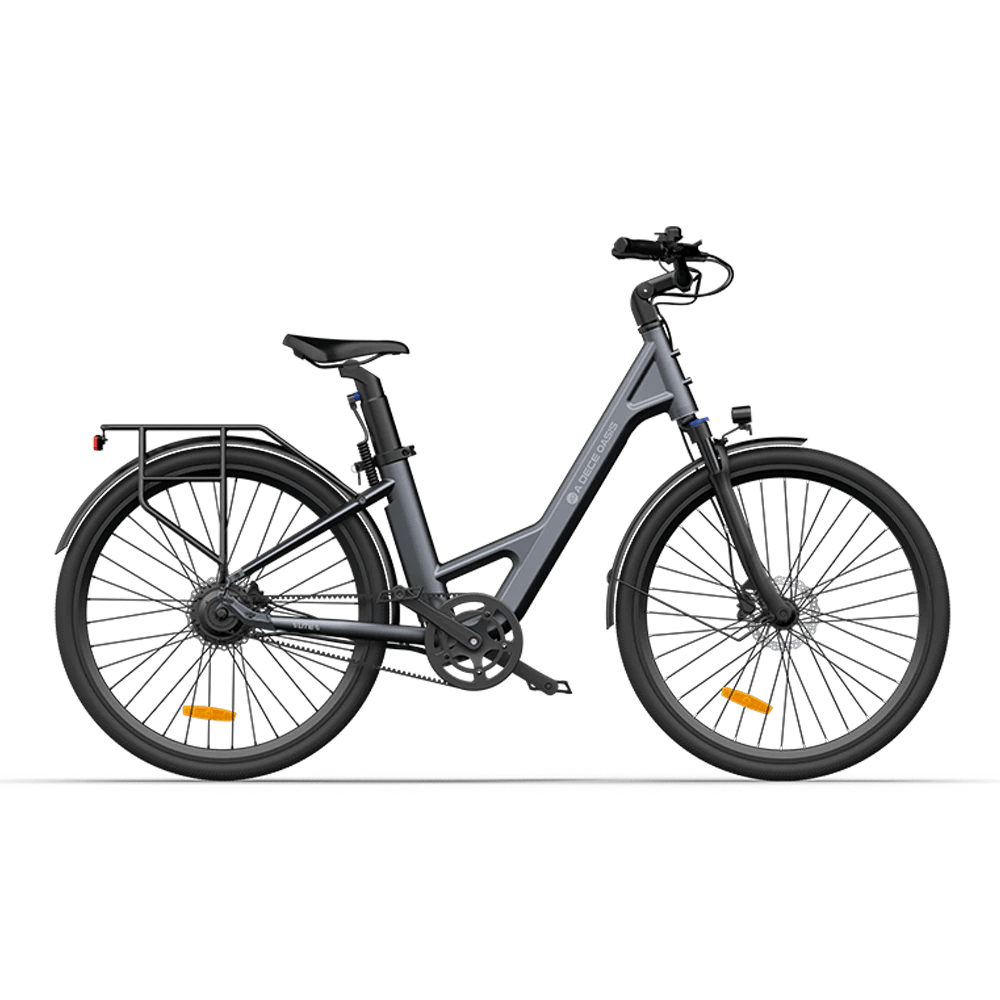

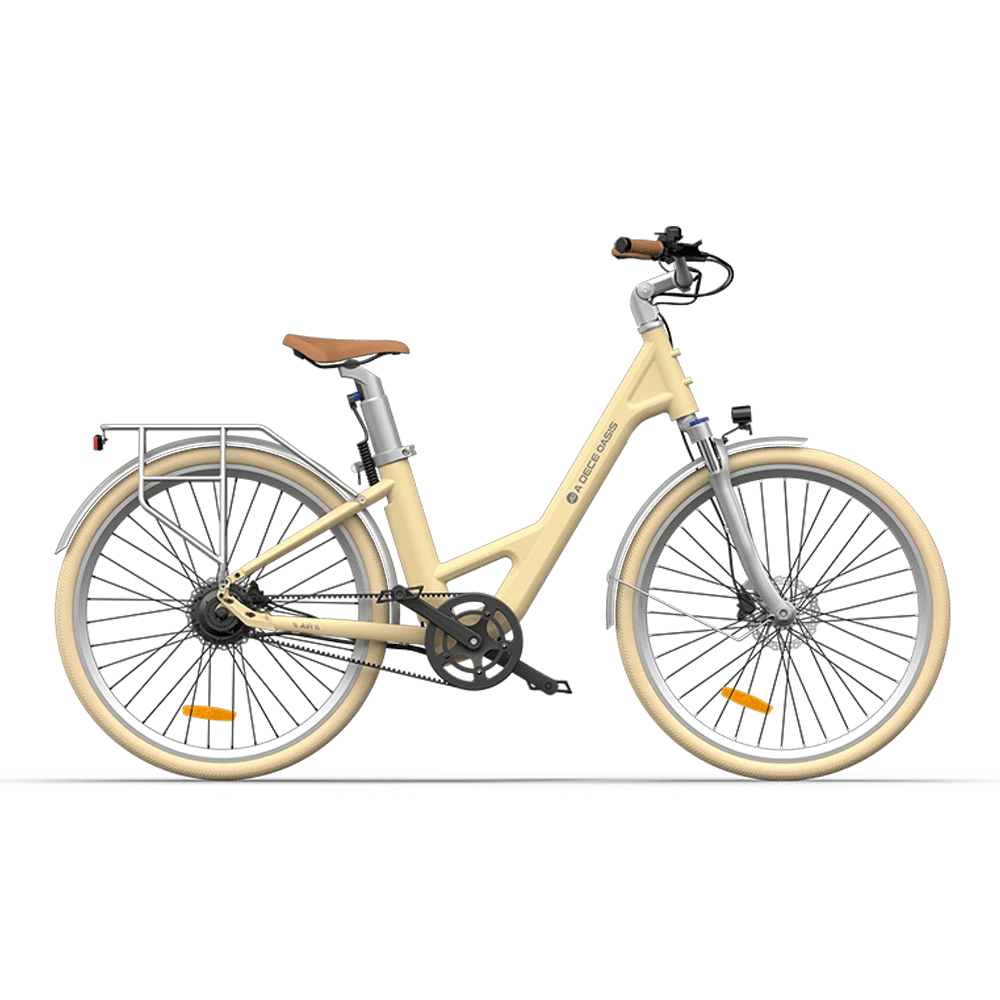

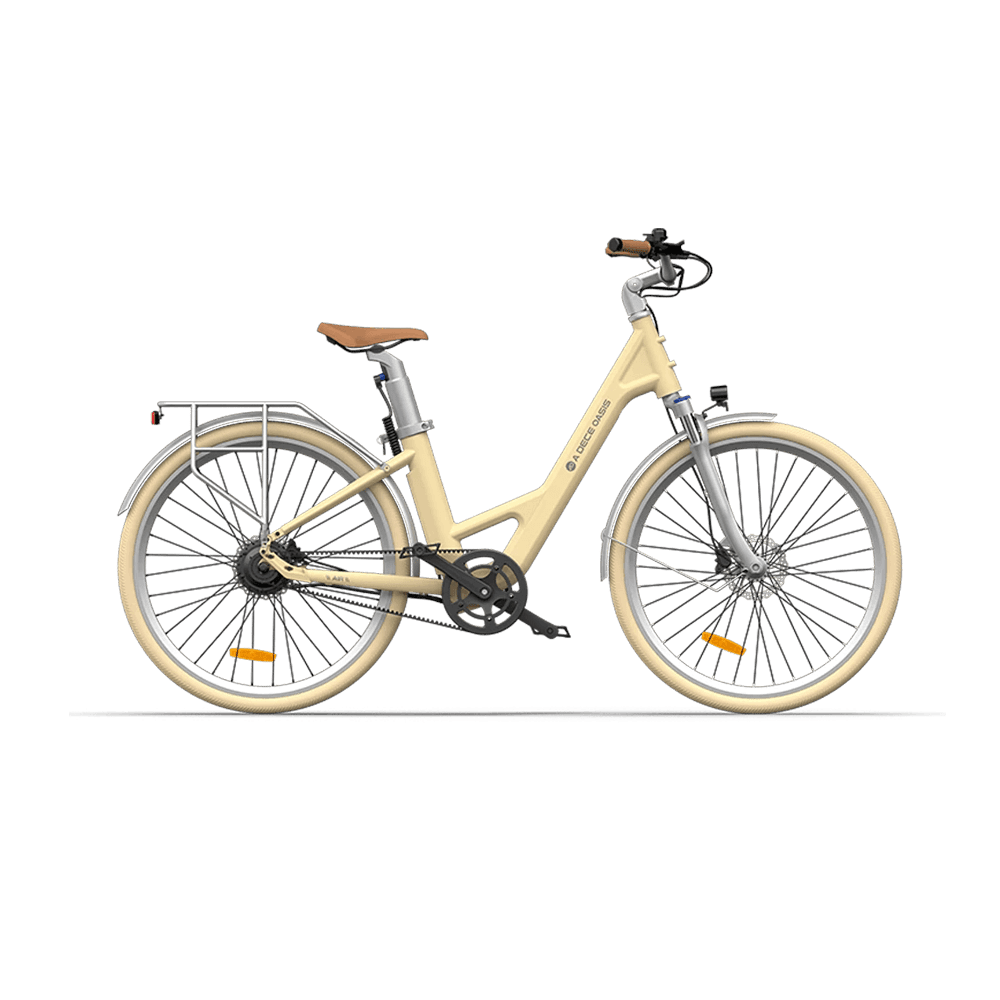

ADO AIR 28
The price shown includes the shipping fee and VAT. Prices in different countries may vary due to different shipping fees and VAT.

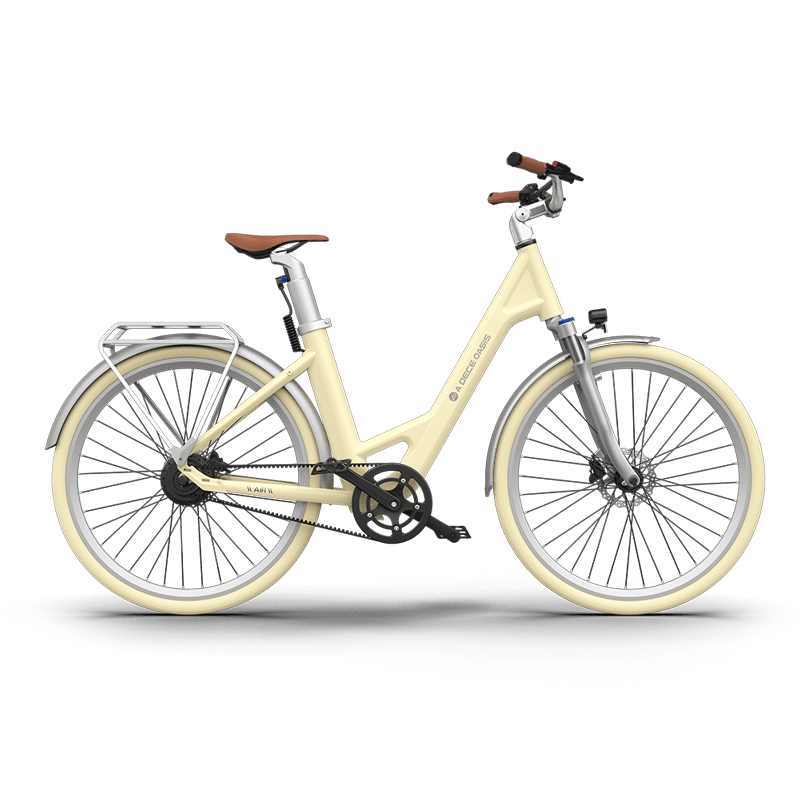

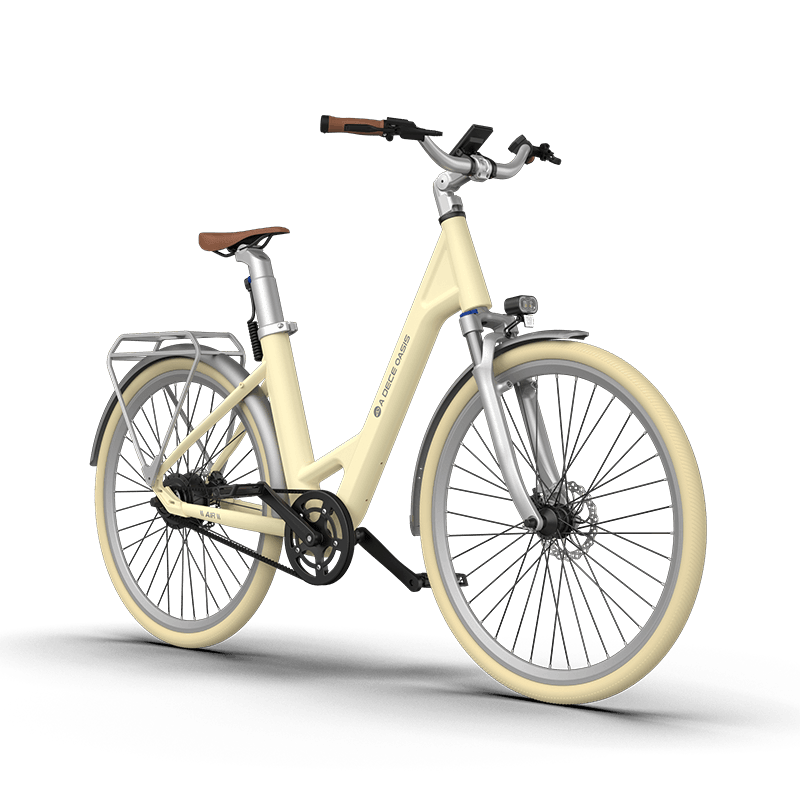

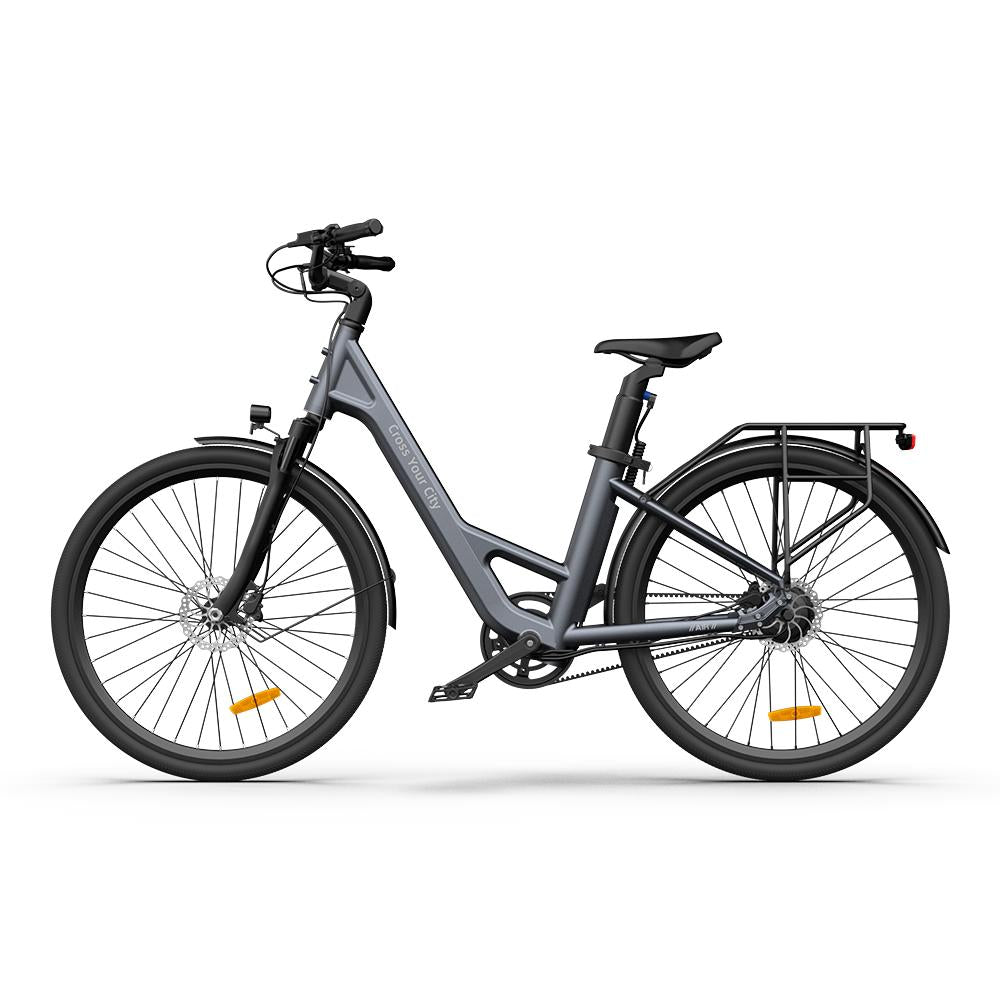

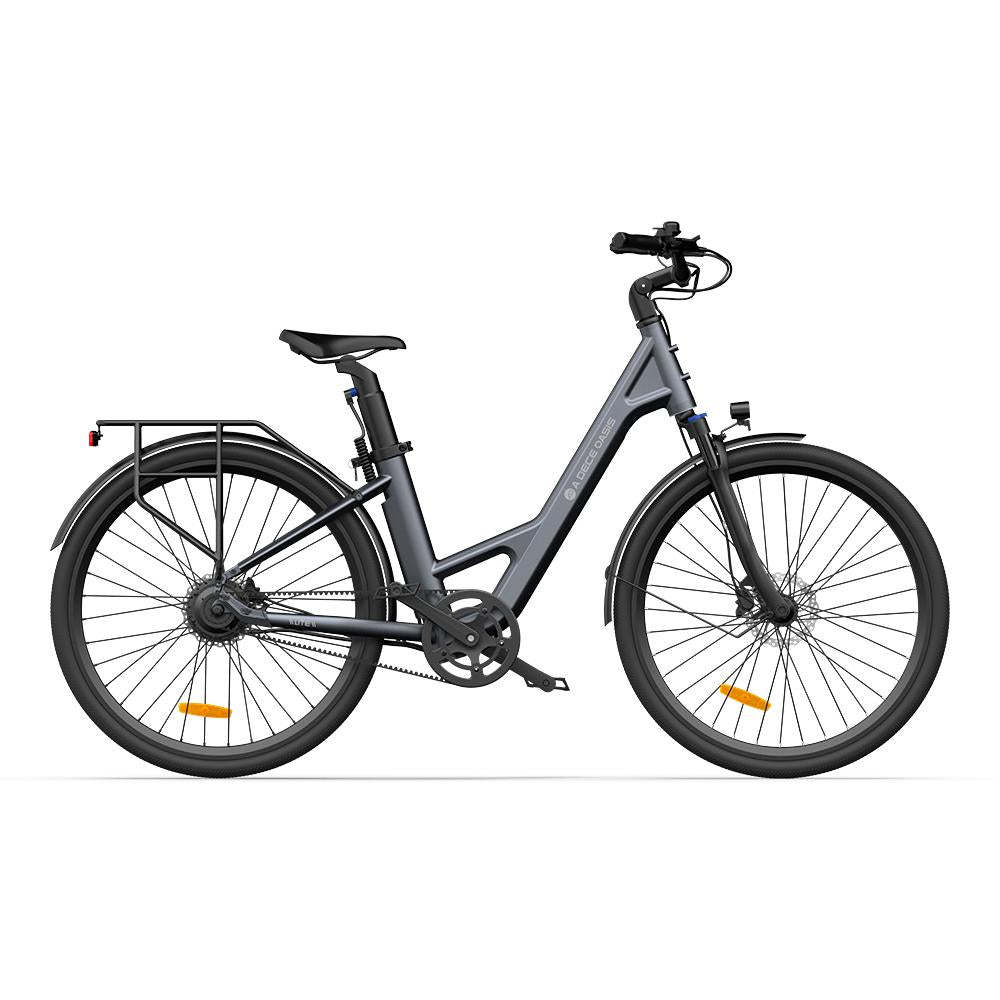

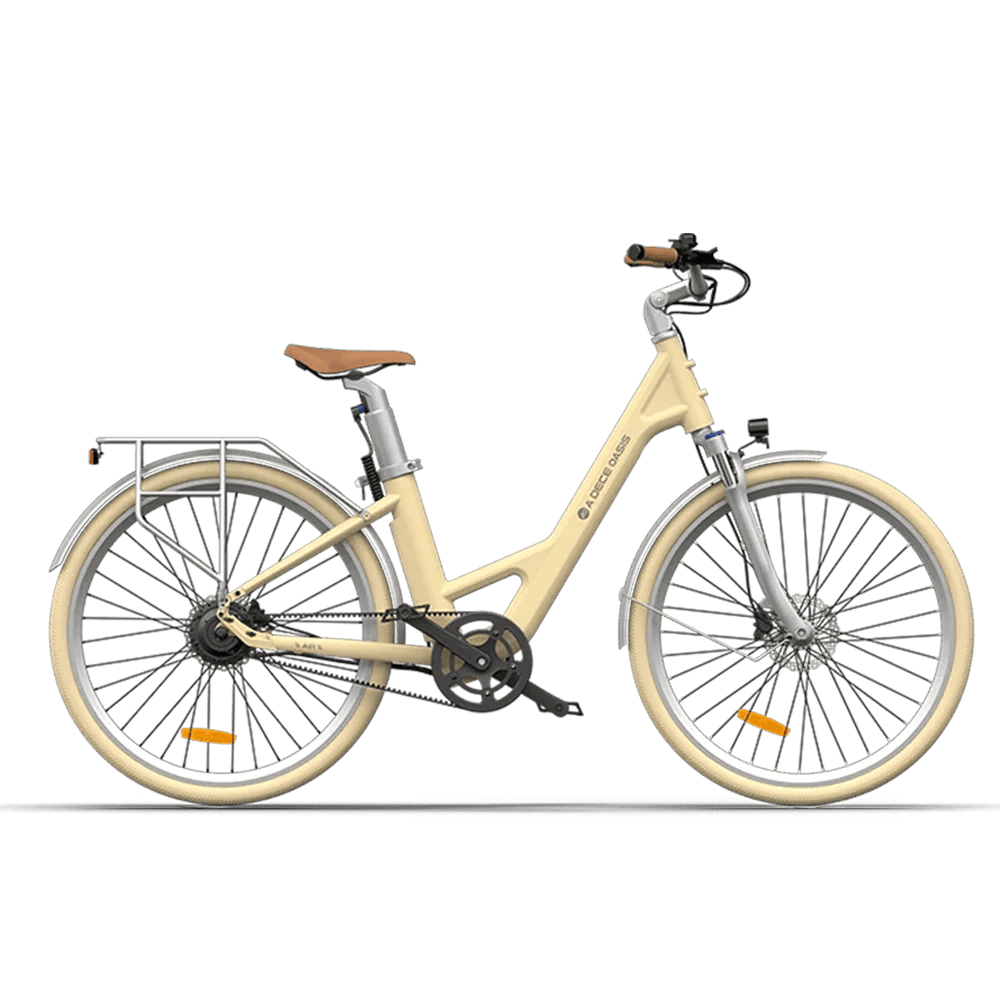

AIR 28
THE ULTIMATE ALL-ROUNDER URBAN E-BIKE
-
Hydraulic Disc Brake
-
Torque Sensor
-
Carbon Belt Drive
-
Range up to 100km
Hydraulic Disc Brake
Torque Sensor
Carbon Belt Drive
Range up to 100km
Precision in Every Detail
Flexi handlebar
Brushless Hub Motor
Aluminum Fenders
3.5’’ IPS Color Display
Lockout Suspension Fork
E-Mark IPX5 Headlamp
Puncture-Resistant Tires
Dutch-style frame
A Smooth, Peppy Ride
Torque Sensor
Elegant Cycling
Carbon Belt
Intuitive Power
Brushless Hub Motor
AS SEEN IN
"Das ADO Air 28 ist leicht, agil und bietet ein sehr harmonisches Fahrgefühl."
"Even a "perfect" city bike can be upgraded and improved, which is why we're getting the Air 28 from ADO."
"Each ADO Air 28 undergoes rigorous testing and evaluation at the ADO QTL SGS Lab to ensure high quality and efficiency."
CERTIFICATES

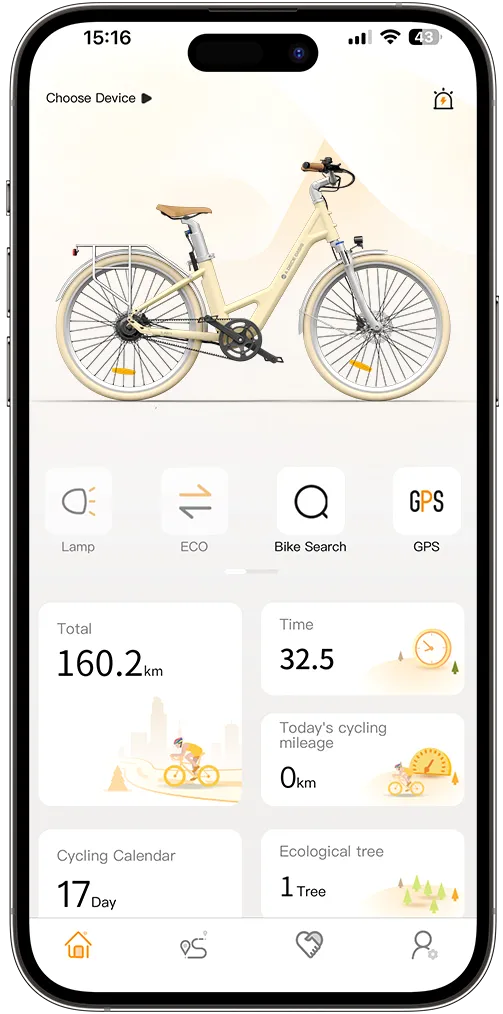

Smart Riding.
Power Gliding.
Communicate with our team directly through the integrated help center.
What Online Reviewers Say？
High-performance e-bike for urban commuting, blending convenience with a modern aesthetic
"Ride the streets and capture every gaze."
Air 28 E-bike
Pair of Fenders
42V 2A Battery Charger
Installation Tool
Air Battery
Rear Rack
Battery Lock
Installation Tool
Rear Rack
Air Pump
Installation Tool
Rear Rack
A20+ Battery
Electronic Spec
-
Marked Power
CE Verison: 250W
Intl. Version: 250W
-
Peak Power
CE Verison: 250W
Intl. Version: 350W
-
Battery
36V/9.6 Ah
-
Torque
CE Verison: 37N.m
Inter Version: 42N.m
-
Charging Time
4-6 hours
-
Display
IPS Color Display
General Spec
-
Range
100 km max range
-
Speed
25 km/h
-
Certificates
SGS CE
-
Suspension
Adjustable front fork shockabsorbption
-
Transmission
Single speed
-
Tyre Size
28*18inch Inch tires
-
Pedal Assist
Torque sensor
-
Assist Intelligent
0-3 level pedal assist
-
Rider Heights
160cm-210cm
-
Working Temperature
-10~50°C
-
Weight
Net weight: 20+ kg (excluding all accessories)
Full weight: 22+ kg (including all accessories)
Permissible Max. Weight: 120 kg*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
Components Spec
-
Frame
Lightweight Aluminum Frame
-
Brakes
Hydraulic disc brakes
-
Wheels
Double Walled Aluminum
-
Fork
Standard
-
Headlight
Automatic sensor light
-
Tail Light
Electric taillight
-
Chain Ring
Carbon Belt
-
Pedals
Folding Pedals
-
Seat
Standard

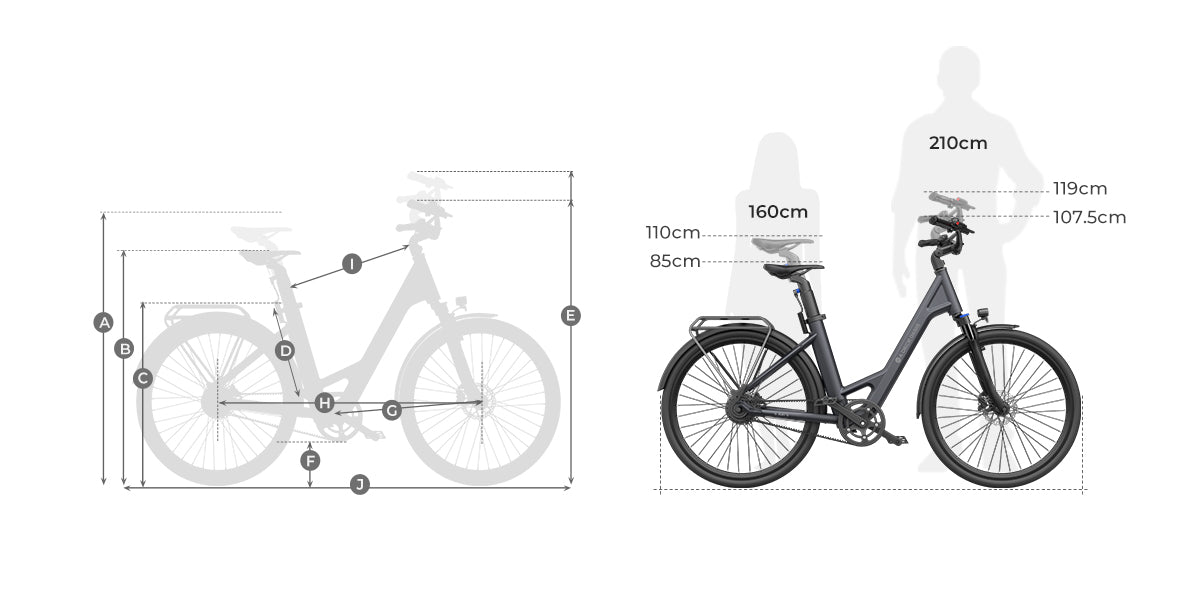

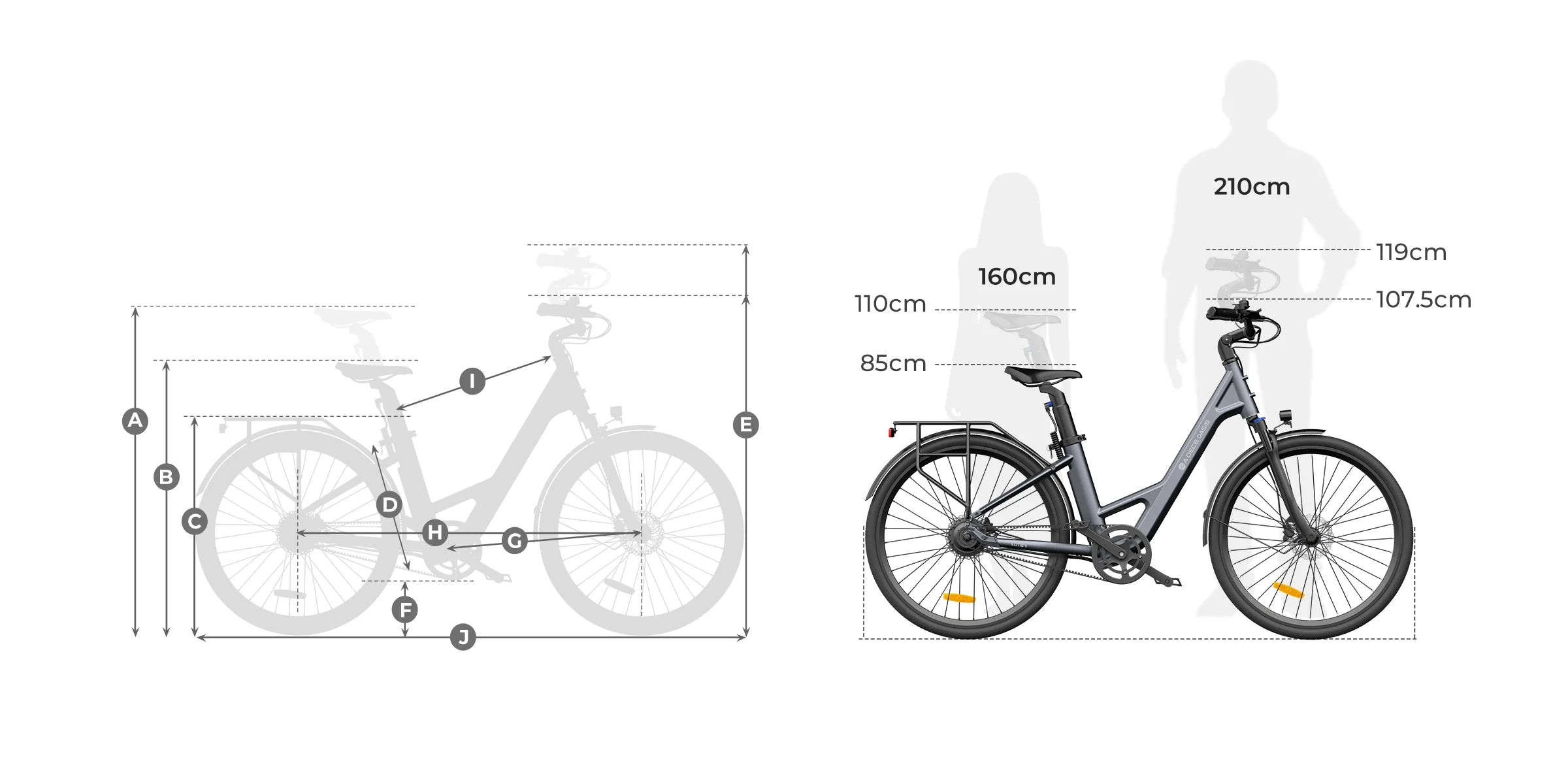

Geometry
-
SIZE (mm)One Size
-
A Max SeatHeight1100
-
B Min Seat Height850
-
C Standover Height720
-
D Seat Tube Length450
-
E Handlebar Height1190
-
F Bottom Bracket193
-
G Front to Center670
-
H Wheelbase1200
-
I Top TubeLength560
-
J TotalLength1935
F.A.Q.
Which countries are allowed to be shipped? How much dose the shipping cost?
We offer free shipping to the following countries:
EU, United States (excluding AK/HI/PR), Australia, United Kingdom
To ensure a better experience for our ADO AIR backers, we provide free shipping to all available shipping regions. If your country is not on the list, please contact customer service serviceigg@adoebike.com to inquire about shipping costs.
What is the difference between the International and CE versions?
CE Version to be compliant with laws on e-bikes in most EU countries and GB: 28" puncture-resistant tires, no throttle installed, max speed 25km/h, 250w motor.
International version with no restrictions: 28" puncture-resistant tires, with throttle, max speed 30km/h, 350w motor.
Is the ADO Air 28 road legal？
The ADO Air 28 is 100% legal, and the CE Version complies with EN 15194 CE certificate. According to SGS CE EN15194 and SGS UKCA, ADO Air conforms to the requirements of the Machinery Directive (2006/42/EC), the EMC Directive (2014/30/EU), the Radio Equipment Directive (2014/53/EU), and DIN EN 15194:2017. The ADO Air battery complies with UN 38.3 lithium-ion battery testing standards.
What kind of rider does ADO Air 28 suit?
The ADO Air 28 with the step-through frame is the obvious choice for commuters. It is easy to get on and off for comfortable riding.
What is the weight of the ADO Air 28?
With the rack: 21 kg
Without the rack: 20 kg
How long is the warranty period?
For bike frame, 5 years warranty; For controllers, motors, batteries, forks, head tubes, handlebars, chargers, pedals, flywheels, chainstays: 12 months warranty. Should you encounter some production related manufacturer’s defect during this period, we will take care of it according to our warranty. For more details, please contact our customer service official@adoebike.com https://www.adoebike.com/warranty-policy/
What Payment Methods Does The Website Support？
Paypal / Visa/ MasterCard / Bancontact / iDEAL / Klarna /Przelewy24/Giropay
Worldwide：Paypal/Visa/MasterCard
Bancontact：Belgium
IDEAL: Netherlands
Giropay: Germany
Klarna：United Kingdom,Germany,Netherlands,Spain,Italy
Przelewy24: Poland
